Mainboard Micronova, PN100_A01

Name: ᐉ Mainboard Micronova, PN100_A01 – Augstākās cenas | BalkanEnergy.LV
Brand: Micronova
Price: 183.6 EUR

Mainboard Micronova, PN100_A01 | Electronics | Pellet Stove Parts |

Nav noliktavā

Mainboard Micronova, PN100_A01

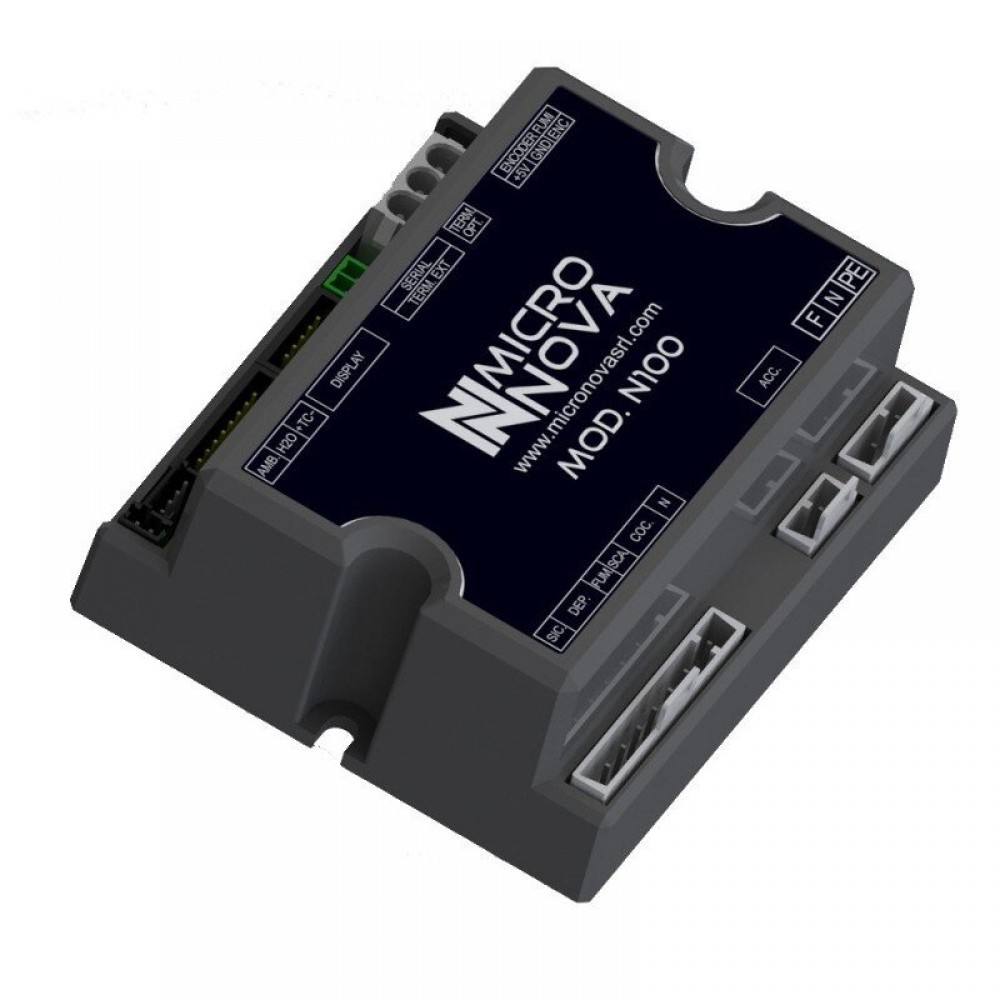

Control board Micronova for pellet stoves.

Stock: Nav noliktavā
Zīmols: Micronova
SKU: 16.449.034

€ 183,60

ar PVN

Bez nodokļa: € 153,00

Daudzums

Ielikt grozā

Izziņa

Pievienot vēlmju sarakstam Pievienot salīdzināšanai

Ietaupiet 2% ar bankas pārskaitījumu.

APTUVENAIS PIEGĀDES LAIKS
05.Jan.2026

Skatiet Piegādes Politiku

365 DIENU ATGRIEŠANA
365 dienasSkatīt sīkāku informāciju

DROŠI MAKSĀJUMI
Skatīt sīkāku informāciju

Apraksts
Raksturlielumi

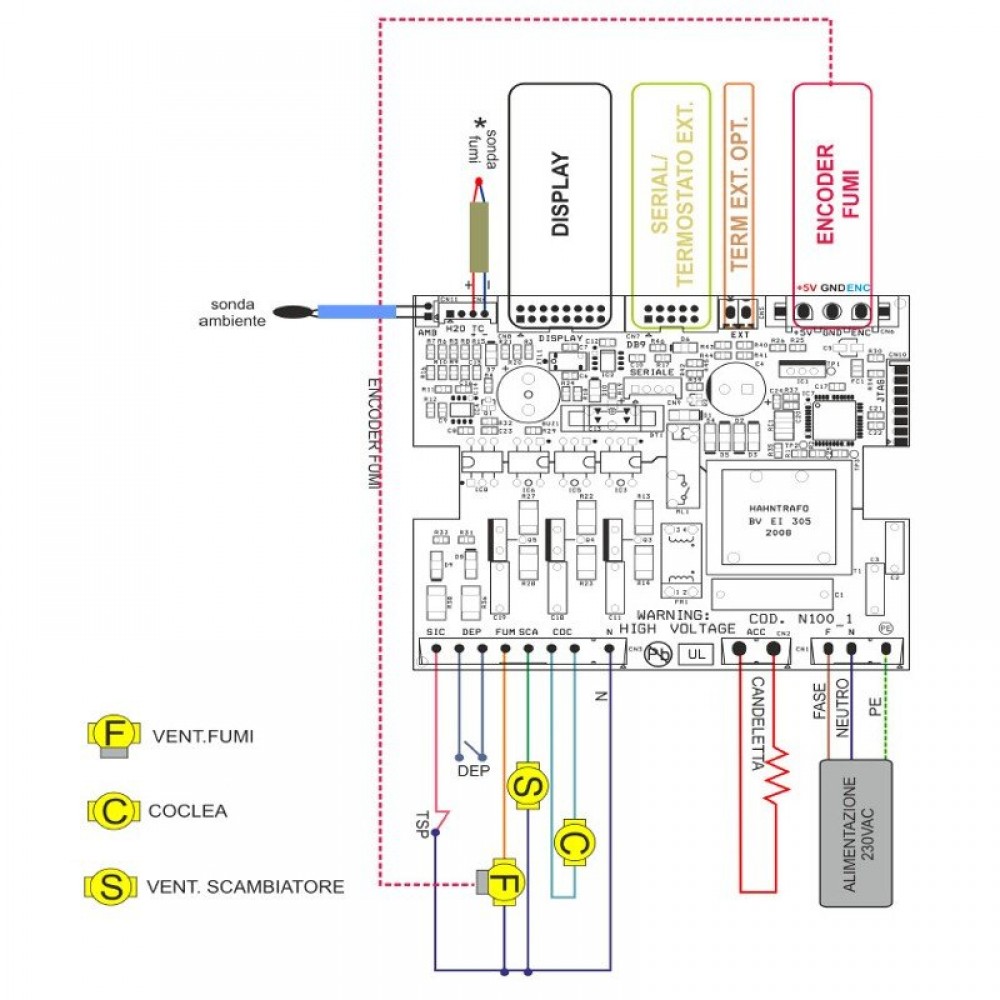

The Controller PN100 MICRONOVA is designed to manage all features of ducted air models pellet stoves using the available inputs and outputs (the display will show all programs that can be chosen in the main menu).

The reliable operating software allows easy and flexible programming of all devices that are connected to the mainboard. The N100 can replace any thermal regulator on almost all stove models on the market.

It also has available some advanced advanced features accessible by the keyboard on the screen or by a computer using the RS232 SERAMI interface or the SeramiNet software.

The control panel has 2 access levels - user accessible menu that only shows the working parameters and technical menu (accessible by password) to program the parameters.

User menu enables to change parameters such as turning ON or OFF, fan control, working temperature control, pellet loading, potter cleaning, final cleaning and alarm reset.
The technical menu has access to advanced parameters - thermic calibration, output and input activation and deactivation, resetting of counters memory, etc.
All information about operating state, room temperature, menu levels, alarms is shown on the display.

For stoves CLAM Cod. 05012549 Mod. Atlas - Mizar
