Buffer Tank Sunsystem, Model P 1000, Capacity 1000L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Noliktavā
  • Zīmols: Sunsystem
  • SKU: 01.409.004
€ 1 590,00
incl. VAT
Bez nodokļa: € 1 325,00

     Ietaupiet  5%   ar bankas pārskaitījumu.

APTUVENAIS PIEGĀDES LAIKS
15.Jul.2025
DHL Schenker
Skatiet Piegādes Politiku

Bezmaksas atgriešana
60 dienasSkatīt sīkāku informāciju

Mēs pieņemam maksājumus
    Skatīt sīkāku informāciju

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000



Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

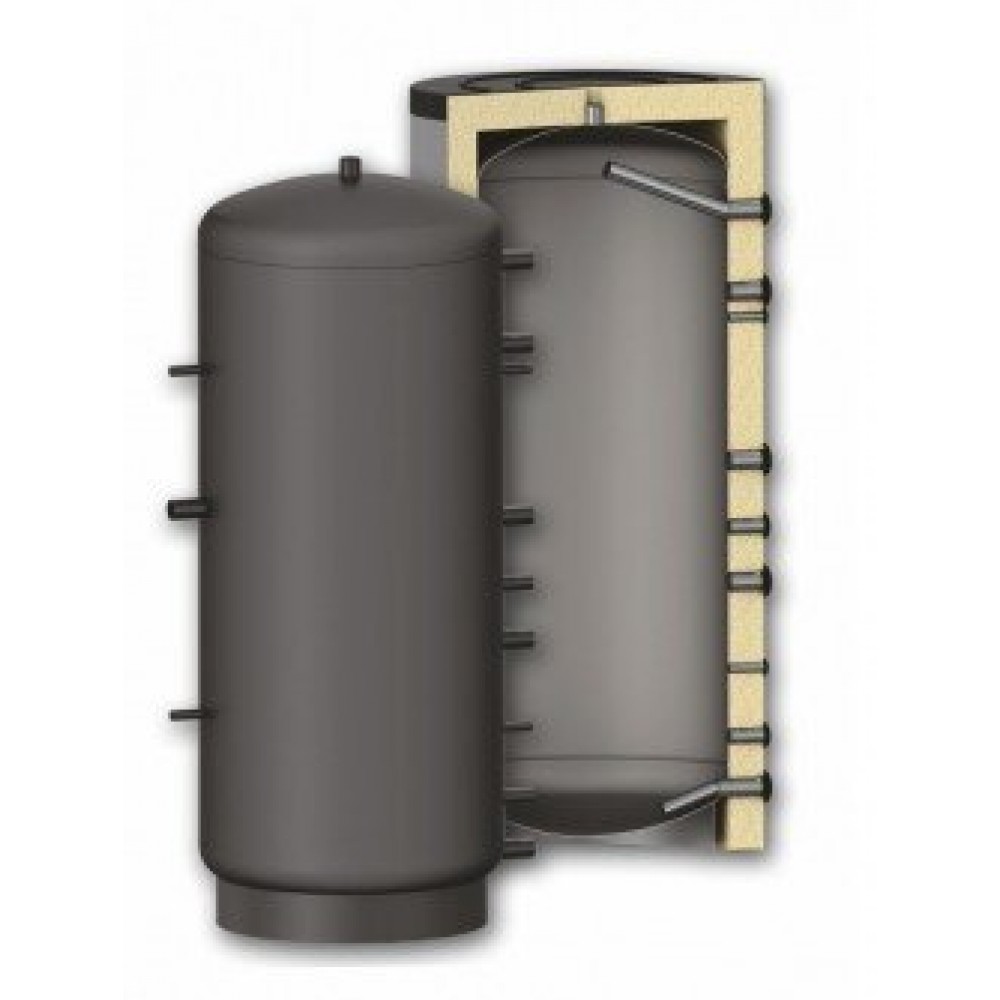

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel


Characteristics
Svars (kg) 152.0000
Ražotāja valsts Bulgaria
Dimensiona augstums (mm) 2090
Garantija 2 Years
Sertifikācija CE
Termometrs Optional
Energoefektivitātes klase C
Ūdens tilpums/saturs (L) 1000
Uzstādīšana Free standing
Siltummainis spirāle No heat exchanger
Augstums bez izolācijas (mm) 2040
Diametrs (mm) 990
Diametrs bez izolācijas (mm) 790
Minimālais vertikālais atstarpe (mm) 2075
Izolācijas svars (kg) 18
Bufera maksimālā darbības temperatūra (°C) 95

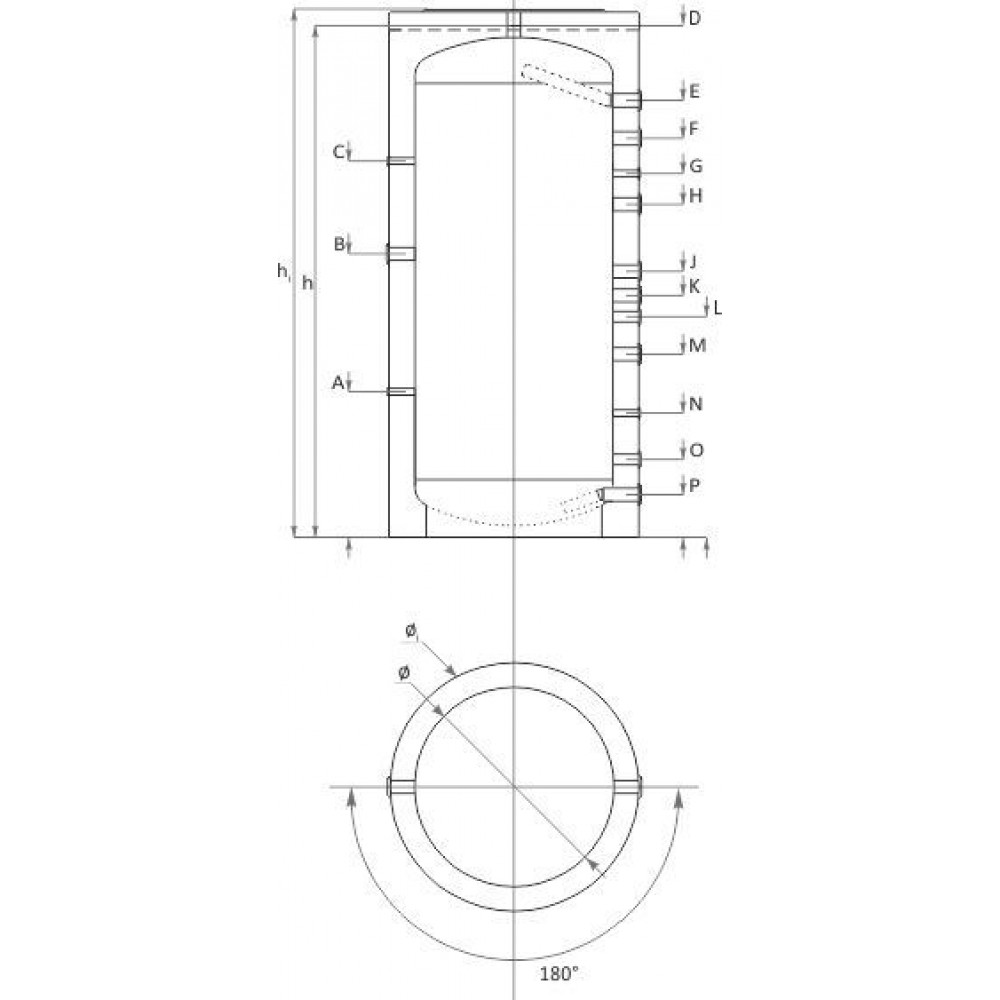

Sensora vāciņš A (mm) G 1/2'' / 580
Elektriskās sildīšanas elements B (mm) G 1 1/2'' / 1130
Sensora vāciņš C (mm) G 1/2'' / 1500
Gaiss ventila vāciņš D (mm) G 1 1/2'' / 2040
Katla siltumnesēja E (mm) G 1 1/2'' / 1742
Sensora vāciņš G (mm) G 1 1/2'' / 1450
Katla siltumnesēja J (mm) G 1 1/2'' / 1060
Siltumnesēja ieeja L (mm) G 1'' / 880
Katla siltumnesēja M (mm) G 1 1/2'' / 730
Sensora vāciņš N (mm) G 1/2'' / 495
Siltumnesēja izeja O (mm) G 1'' / 310
Siltumnesēja ieeja F (mm) G 1 1/2'' / 1520
Katla siltumnesēja izeja P (mm) G 1 1/2'' / 150
Bufera darba spiediens (bar) 3
