Buffer Tank Sunsystem, Model PR2 800, Capacity 800L, Two heat exchanging coils Vesse;






Saving energy and money is achieved using buffer vessels of the Sunsystem PR2 series in the central heating system.

- Stock: Noliktavā
- Zīmols: Sunsystem
- SKU: 01.409.020
Ietaupiet 5% ar bankas pārskaitījumu.


Bezmaksas atgriešana
60 dienasSkatīt sīkāku informāciju
Mēs pieņemam maksājumus
Skatīt sīkāku informāciju

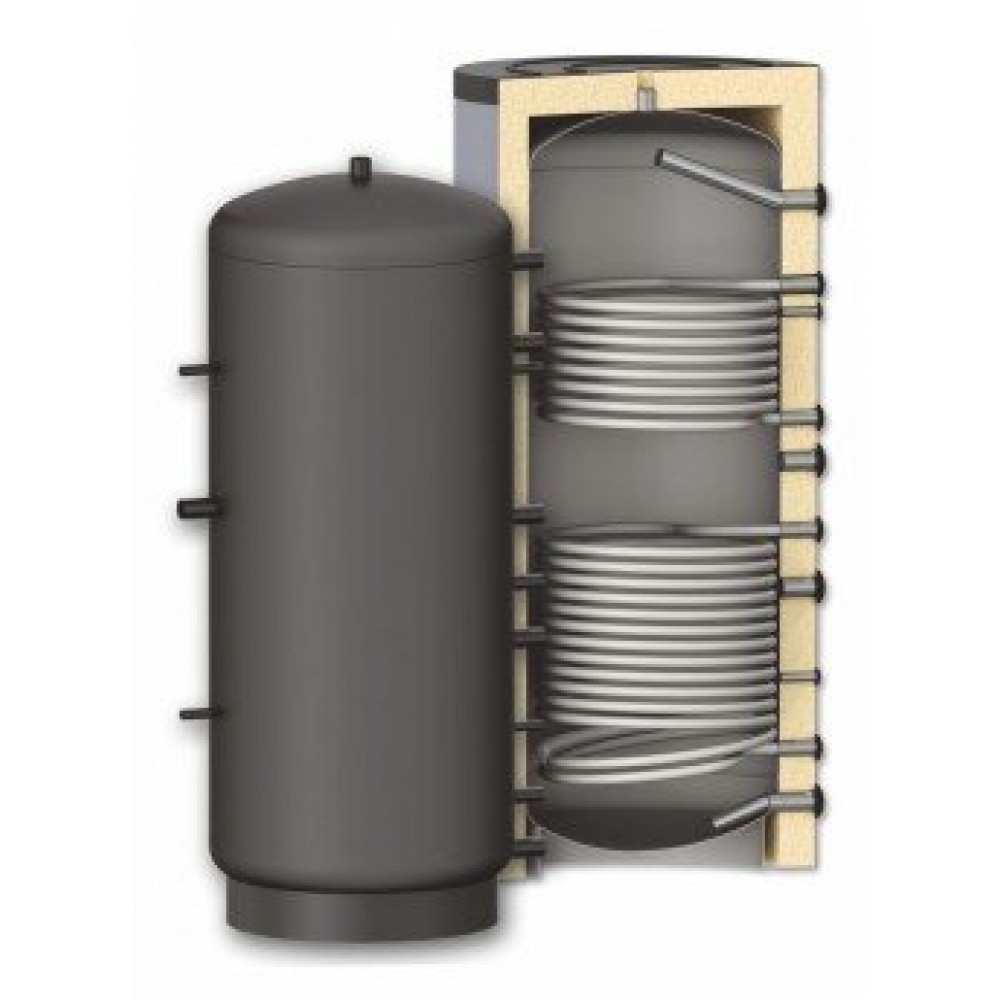

The buffer tanks of series PR2 of the company SUNSYSTEM used for improving the performance and efficiency of heating, through the production and storage of hot water, which is used in the central space heating system. These specific buffer tanks allow the use of up to 3 external heat sources and optional kit for electric heating with nominal power 3kW, 4.5kW, 6kW or 7.5kW.
Product Features
- Range of volumes of 300-3000 liters
- Upright storage tank made of steel S235JR
- Primer coated on the outside
- CFC free soft PU-foam insulation with thickness of 100 mm
- PVC coating in RAL 9006 or other colors on demand
- All threads are internal
- Option for installing a heating element as back-up source of heat
- Compressive strength 3 bar
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C - capacity from 300 to 3000 Liters;

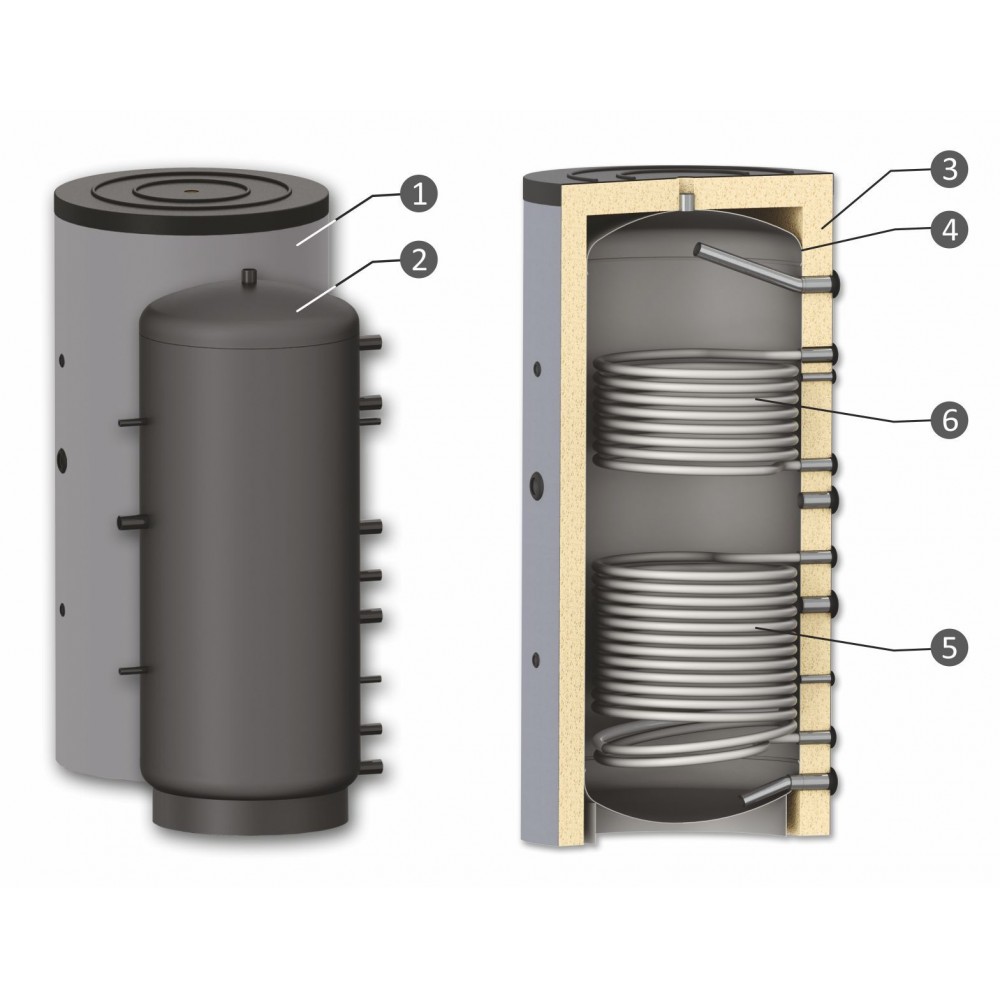

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
5. Lower coil S1
6. Upper coil S2
Characteristics | |
Svars (kg) | 185.0000 |
Ražotāja valsts | Bulgaria |
Dimensiona augstums (mm) | 1910 |
Garantija | 2 Years |
Termometrs | Optional |
Energoefektivitātes klase | C |
Ūdens tilpums/saturs (L) | 800 |
Apakšējā cievu S1 tilpums (L) | 17.9 |
Uzstādīšana | Free standing |
Siltummainis spirāle | Two heat exchanger coils |
Augstums bez izolācijas (mm) | 1860 |
Diametrs (mm) | 990 |
Diametrs bez izolācijas (mm) | 790 |
Minimālais vertikālais atstarpe (mm) | 1900 |
Izolācijas svars (kg) | 16.4 |
S1 apakšējā spirāles siltuma apmaiņas virsma (m²) | 2.9 |
Bufera maksimālā darbības temperatūra (°C) | 95 |
Rekomendējamais katla izmērs, kas savienots ar buferu (kW) | 15 - 27 |

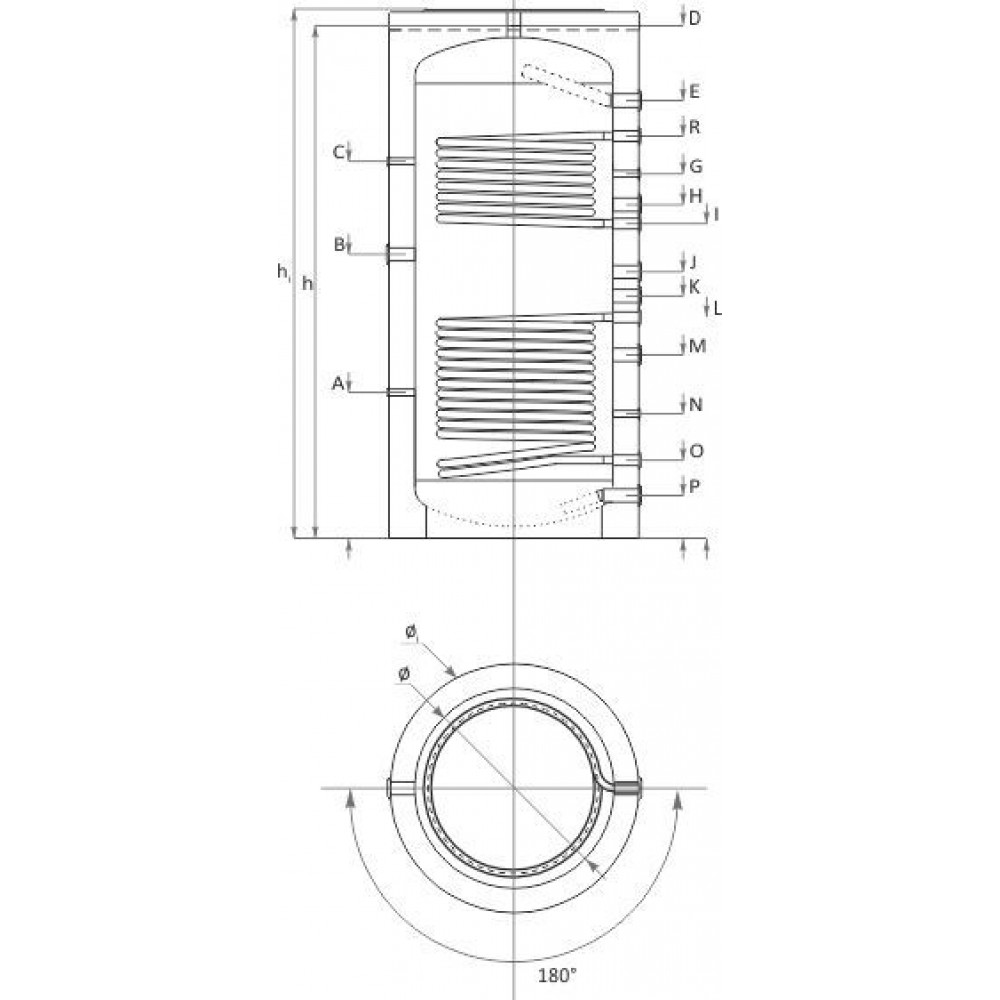

Sensora vāciņš A (mm) | G 1/2'' / 570 |
Elektriskās sildīšanas elements B (mm) | G 1 1/2'' / 920 |
Sensora vāciņš C (mm) | G 1/2'' / 1290 |
Gaiss ventila vāciņš D (mm) | G 1 1/2'' / 1860 |
Katla siltumnesēja E (mm) | G 1 1/2'' / 1573 |
Sensora vāciņš G (mm) | G 1/2'' / 1290 |
Katla siltumnesēja J (mm) | G 1 1/2'' / 980 |
Siltumnesēja ieeja L (mm) | G 1'' / 820 |
Katla siltumnesēja M (mm) | G 1 1/2'' / 670 |
Sensora vāciņš N (mm) | G 1/2'' / 465 |
Spirāles maksimālā darbības temperatūra (°C) | 110 |
Siltumnesēja ieeja F (mm) | G 1 1/2'' / 1390 |
